ECOMODULAR

Manual packaging machine - L-sealing - Entry level - Packaging plate 540x390 mm

ECO MODULAR  0073

Ecomodular: the wider wrapping machine in the sector

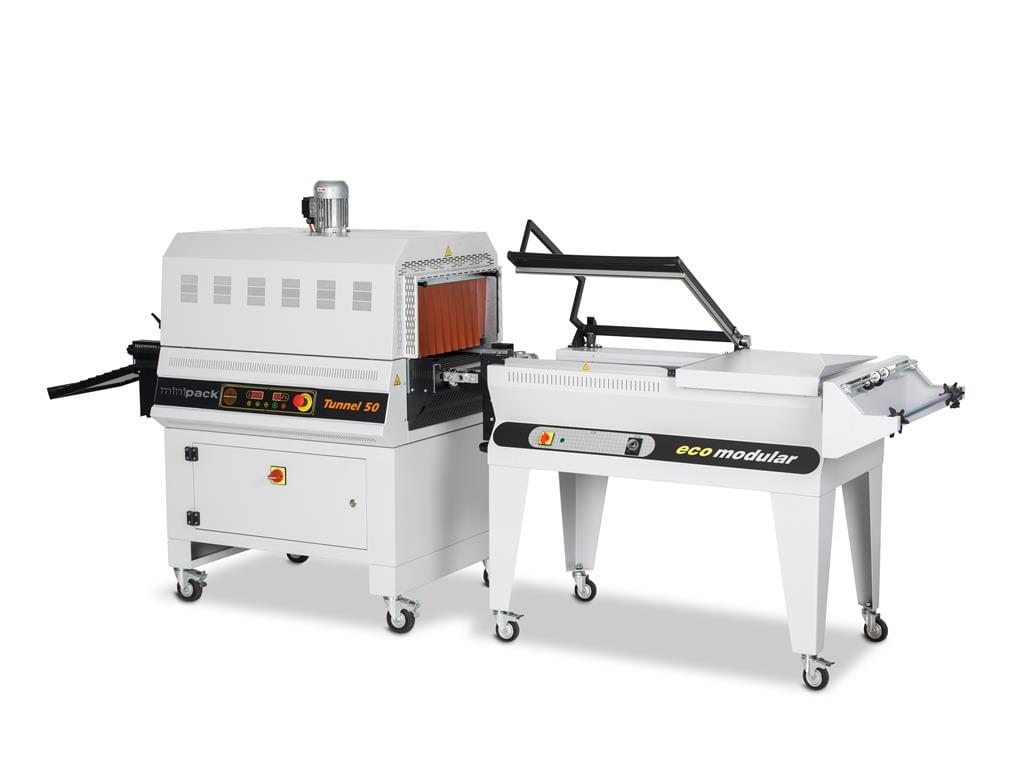

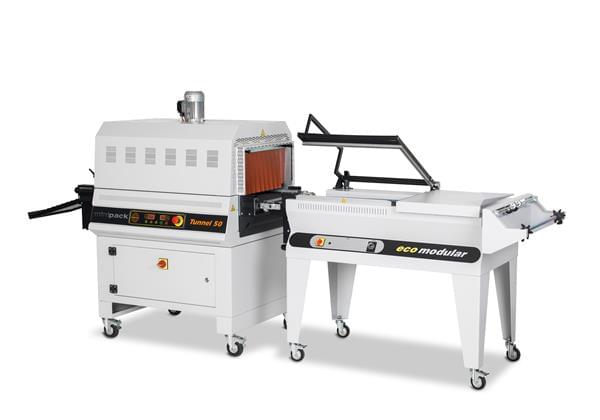

A wide sealing surface, as much as 570x420 mm, is the distinctive feature of ECOMODULAR, the easy and user-friendly manual angular packaging machine. The sealing blade at the bottom has a simple and effective temperature control system and allows for optimal sealing with any kind of film. Available in the standard (with a fixed plate) and automatic version (with a product evacuation belt), this machine by minipack®-torre is completed by TUNNEL 50. This solution creates perfectly heat-shrunk packaging and meets any need in terms of packaging.

Need more info? Get in touch now and we’ll answer all your queries!

technical features

Electrical power supplyV230
MAX power installedkW2.2
Hourly outputp/h (pph)0-550
Available dimensions of the sealing barsmm540x390
MAX Reel Dimensions (diameter)mm250
MAX Reel Strip Dimensions (width)mm600
Work surface heightmm930
Machine weight (Net/Gross)kg101/130
Machine dimensions with the sealing fr. openmm1570x730x h.1400
Machine dimensions with the sealing fr. closedmm1570x730x h.1100

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.
