FM75 evo

Trolley manual heat-shrink - Full Optional - Packaging plate 420x280 mm

FM75-Evo main

FM75 EVO: all the innovation by minipack®-torre in a wrapping machine

Minipack®-Torre has never renounced the pioneering spirit that has always accompanied it. It was precisely the invention of the first chamber machine, in fact, to decree the birth of the company over 40 years ago, with the first patent in 1976. But ideas cannot be stopped. Today, Minipack®-torre launches a new series that is the result of years of research and development and summarises all the qualities of its compact packaging machines: reliable, easy to use, durable.

Need more info? Get in touch now and we’ll answer all your queries!
  • Technical solutions
    • High-performance steel resistors: shrinking time cut by 50% and heating time cut by 60%
    • Soft Shrink fan speed adjustment: perfect heat-shrinking also on very light or flexible products. Sealed areas do not open. Extremely quiet. Exclusive patent
    • Comfort Zone Fan Stop: the fan stop is a “green” solution that allows to save 20% more energy and provides greater operator comfort during packaging, since the fan stops when the chamber opens

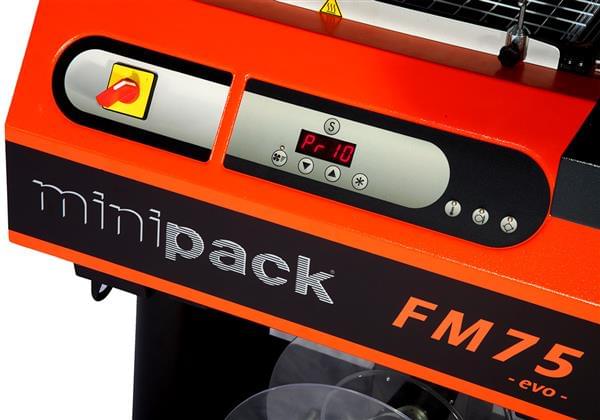

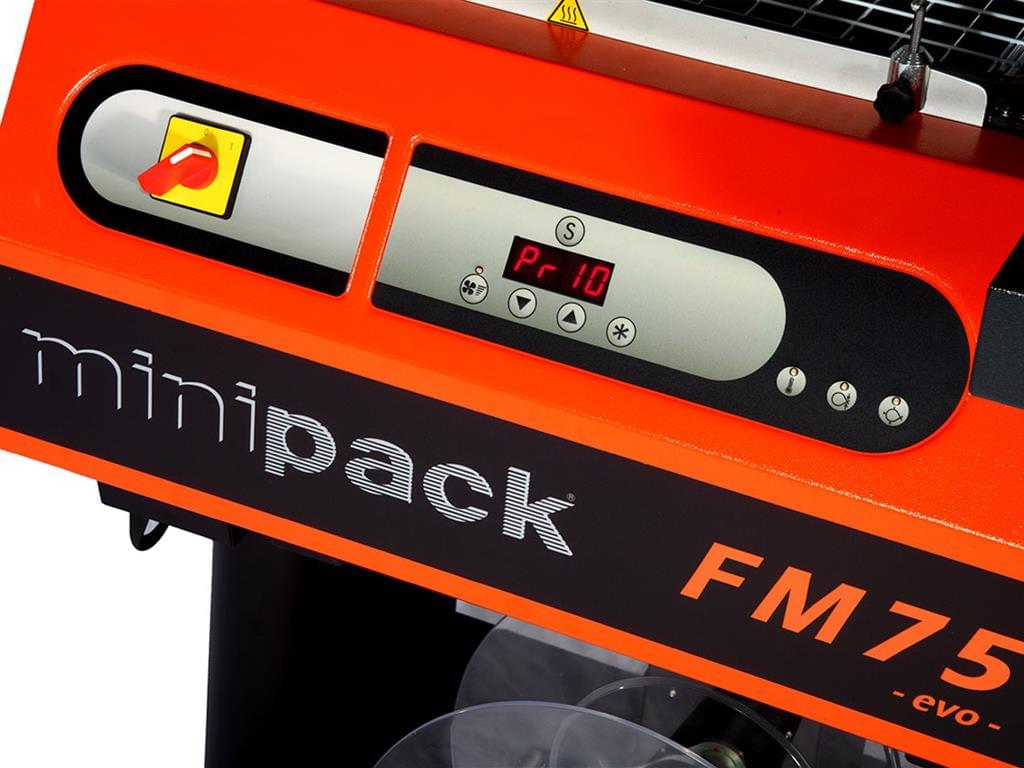

    • New latest-generation board: quality components. 4-digit display
    • Waste rewinder: productivity up by 20%
    • Sealing bar cooling: increased productivity and improved sealing.
  • Optional features

technical features

Electrical power supplyV200/230
Phaseph1
Maximum power installedkW3,35 (200V)
3,45 (230V)
Hourly outputpcs/h0-300
Available dimensions of the sealing barsmm420x280
MAX product sizemm400x250x160
MAX Reel Dimensions (diameter)mm250
MAX Reel Strip Dimensions (width)mm500
Work Surface Heightmm940
Machine dimensions with the lid openmm1160x700x1310
Machine dimensions with the lid closedmm1160x700x1150
Weight (Net/Gross)Kg112/136

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

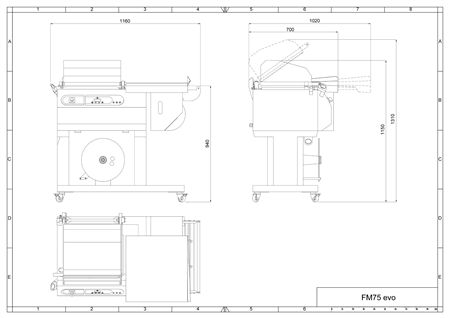

Technical drawing

DOWNLOAD PDF
DO YOU HAVE THIS MACHINE?

Register it now on our website...

Open
etichettaminipack
Would you like to pack your products with this machine? Book your free, non-binding packaging test.
Optional
Customisation
gallery
fm 75evo
case history
fm76a evo-anteprima
WHY SHRINK-WRAPPING?

Before Minipack-torre shrink-wrapping machines, shrink-wrapping was exclusively performed with big machines and complex systems in large companies.The new packaging machine line was born in 1970, thus allowing the small or medium companies to employ shrink-wrapping
