Tabletop manual heat-shrink - Minimum clearance - Sealing bar 380x250 mm

Minima evo (Nuovo logo)

Minima Evo: the small and flexible shrink wrap machine

MINIMA has always been the smallest model in the range of packaging machines that minipack®-torre offers on the market. Designed for small/medium-sized production companies, this shrink wrap machine provides versatility and minimum footprint as its main strengths. The absolute reliability and high yield, combined with low energy consumption and easy use, are the characteristics that make MINIMA one-of-a-kind in its category.

Need more info? Get in touch now and we’ll answer all your queries!
  • Technical features

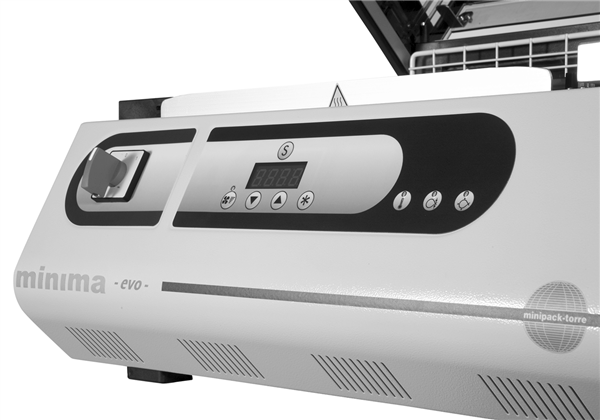

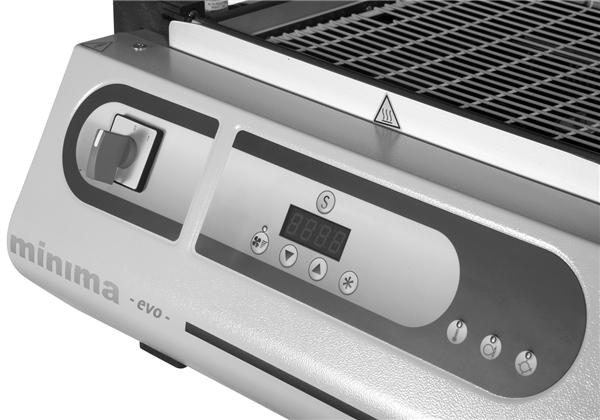

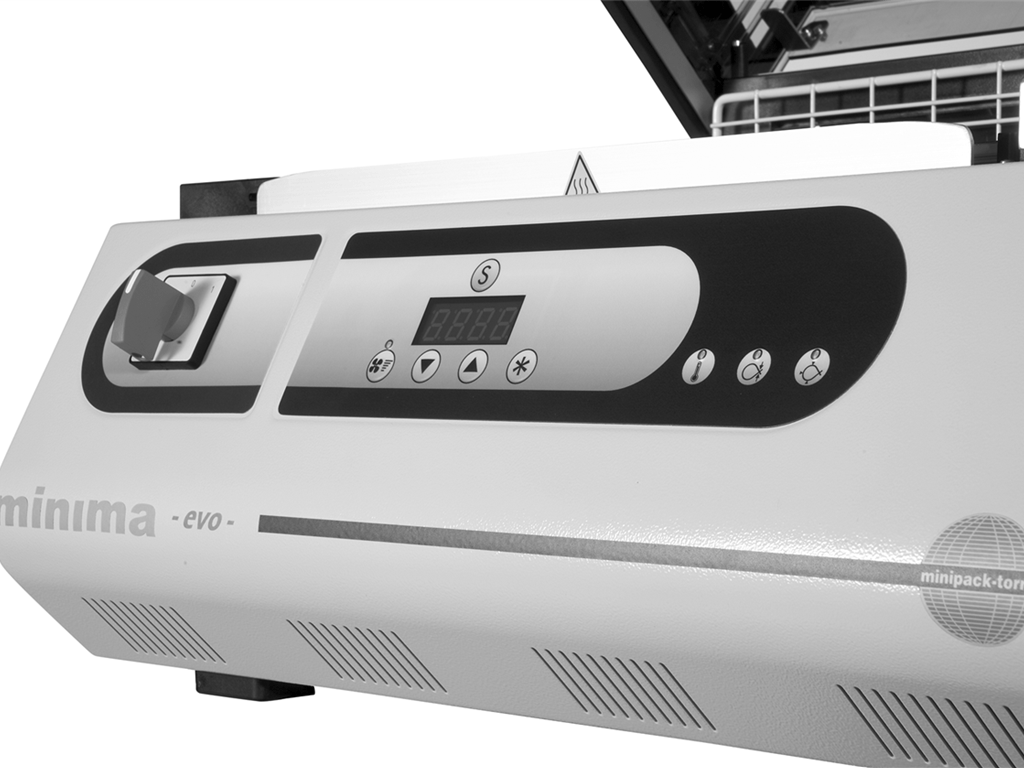

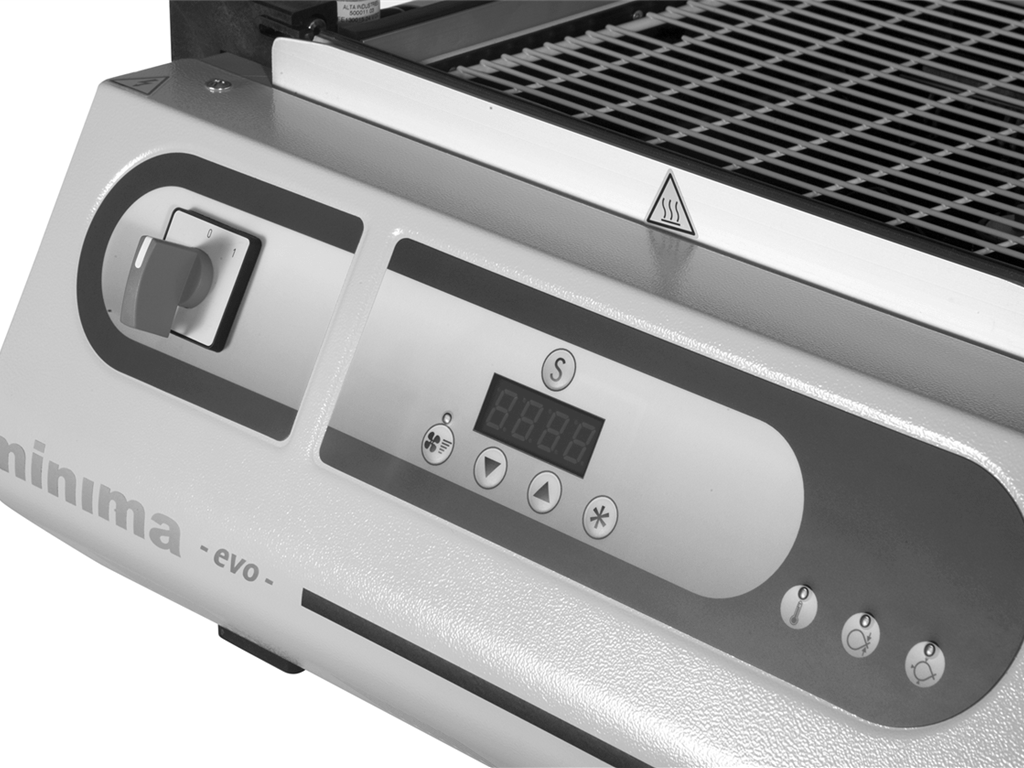

    • Electronic board with optimal sealing and shrinking control, with 10 preset programs that can be selected on the display. 4-digit display
    • Extra wide reel support to house standard Ø200x350 mm reels: extended operation and few production stops.
  • Optional features

technical features

Electrical power supply120V 1Ph
200V 1Ph
230V 1Ph
Maximum power installed1,2 kW (200/230V)
1,3 kW (120V)
Maximum current5,2 A (200V)
6 A (230V)
10,5 A (120V)
Hourly output0-300
Available dimensions of the sealing bars380x250 mm
MAX product size350x240x140 mm
MAX Reel Dimensions (Ø x length)Ø200x350 mm
Machine dimensions (open hood)930x550x580 mm
Machine dimensions (closed hood)930x550x370 mm
Weight (Net/Gross)36/48 kg

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

Technical drawing
