MVS31 XP

Tabletop vacuum - Sealing bar 310 mm - Process tracking and labeller

TABLETOP VACUUM MACHINE

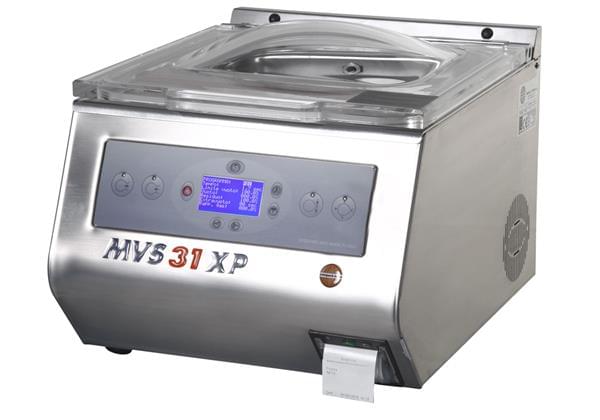

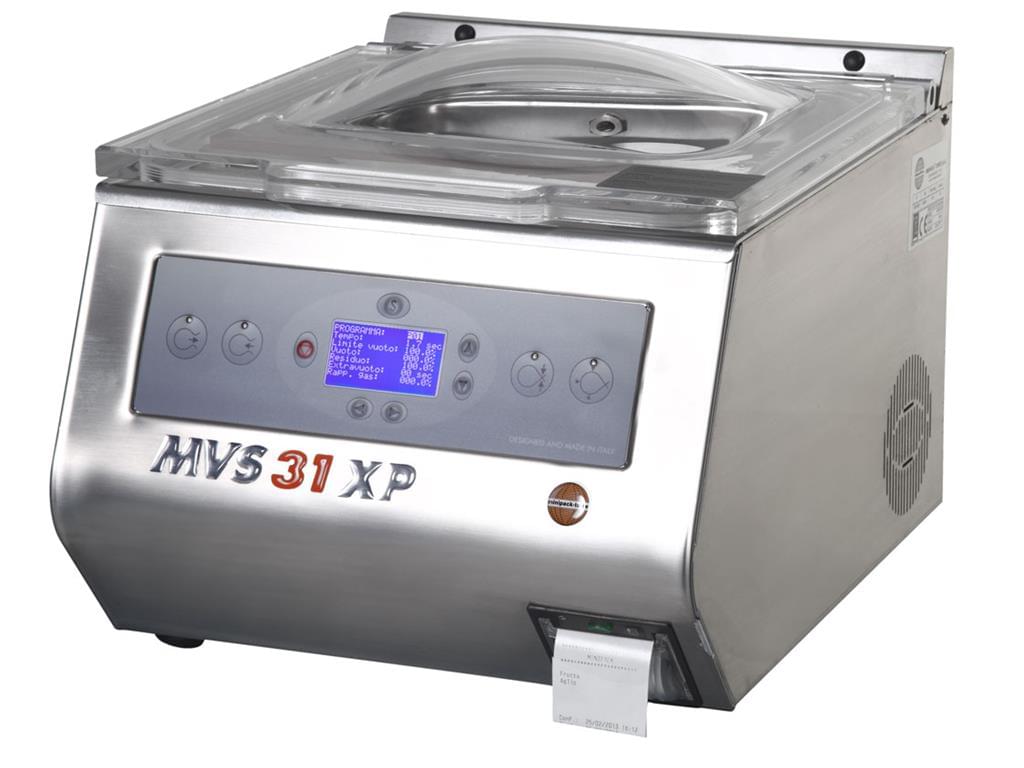

MVS31XP main

MVS31 XP: the chamber vacuum sealer with vacuum tracking system

With the new series of chamber vacuum packaging machines MVS XP the vacuum created in the packing process can be traced: it is an innovative and revolutionary possibility for the internal vacuum, typical of the continuous thrust to the innovation that characterizes all the packaging machines signed by minipack®-torre.

In fact, some models of the series give the possibility to print the labels for each machining, on which they are given the most important information of the packaging operation.

In these chamber vacuum packaging machines, another innovative and feature-rich element is the control panel, a true flagship that encompasses some pioneering technologies in the food packaging sector. Thanks to its high degree of interactivity and the simplicity of navigation between functions, the Panel allows a quick setting of operations, helping the operator to schedule even the technical assistance interventions. The entire range of chamber vacuum packaging XP has obtained the CE/ETL/NSF certification.

Need more info? Get in touch now and we’ll answer all your queries!

technical features

Electrical power supply120V 60Hz 1Ph
230V 50/60Hz 1Ph
MAX power installed0,9 kW
Maximum current7,5 A (120V)
4,0 A (230V)
Dimensions of the sealing bars310 mm
Packaging cycle (Vacuum 99.9%)Vacuum= 22 s
Air re-immission= 4 s
Vacuum pump8 mc
Machine dimensions (lid open)390x499x669 mm
Machine dimensions (lid closed)390x499x345 mm
Machine weight (Net/Gross)37/41 kg
Available chamber dimensions
(Tank+lid)
325x243,5x158 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

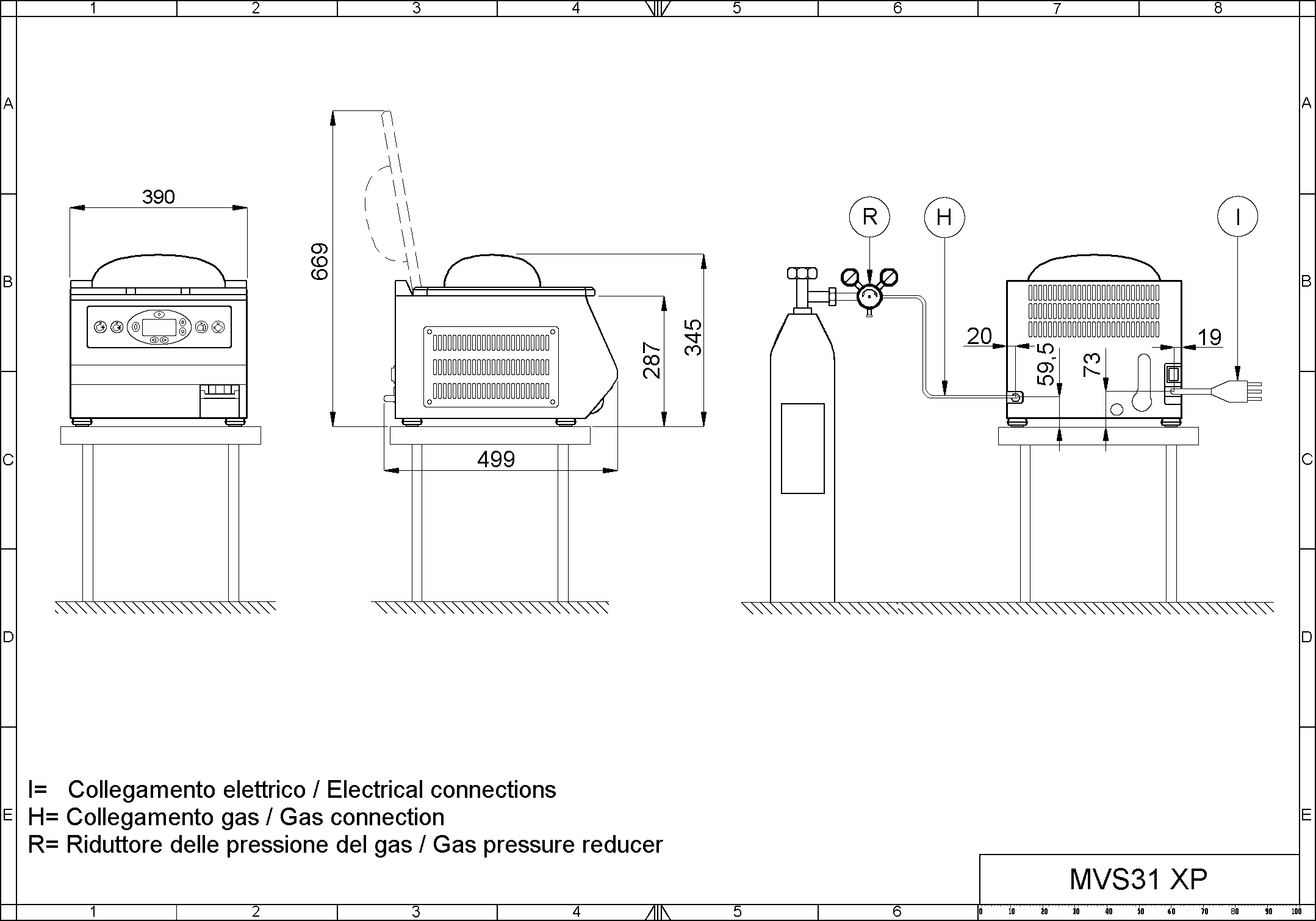

Technical drawing
