MVS52 DV XP

Double tank trolley vacuum - Sealing bars 530 mm - Process tracking and labeller

VACUUM MACHINE WITH CARRIAGE

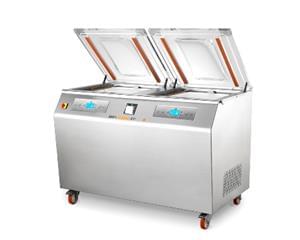

MVS52DVXP main

MVS52 DV XP: professional vacuum packaging machine with automatic labelling

From today, the tracking of internal vacuum is possible: with the range of MVS vacuum packaging machines, in fact, a label can be printed for each packing operation, with all the essential information of the processing. An innovative and revolutionary possibility for the food industry, in perfect style minipack®-torre.

The range of chamber vacuum sealers also displays a renewed control panel, which is enhanced by brand new features. Always characterized by the utmost ease of use, the display allows you to navigate quickly among the available options, setting the desired packaging programs in a few steps. In addition, the panel helps the operator to program the maintenance and assistance interventions more efficiently.

The whole new line of vacuum packaging machines XP is CE/ETL/NSF Certified.

Need more info? Get in touch now and we’ll answer all your queries!
  • A series of unique benefits
    • Newly-designed liquid crystal CONTROL DISPLAY: it provides extensive packaging information, quick and easy settings and option of programming technical work servicing on the machine at the premises of the end user
    • PRELIMINARY DIAGNOSIS of technical issues on the machine directly from the display via the check-up function without opening the machine
    • Option of retrieving the types of products that need to be packaged, divided by macro-categories (meat, fish, cheeses, vegetables, etc.)
    • Option of entering the type of inert gas (e.g. FOOD1-2-3) and setting (in a submenu) the percentage of gases forming the mix (e.g. O2=10% N=70% CO2=20%), thereby transferring the set data onto the label. This is a top function in case of external mixers
    • Option of selecting the subcategories (e.g. meat, veal, beef, chicken, pork, etc.) for each product macro-category
    • Automatic setting for packaging steps with suggested or default values after the selection of the subcategories, while the expiry date remains to be set (optional step)
    • EASY PULSE function to make programming easier, with the benefit for the operator of recalling functions that have already been set and settings
    • Printing option (to be programmed) to issue the vacuum certification label and choose the number of copies to be applied on the individual items of packaging created during each cycle
    • Electronic SOFT AIR designed with various speed settings. It allows the air gradually go back into the chamber without letting the packaging suddenly collapse (ideal for products with sharp areas)
    • CP-CONDITIONING PROGRAM function to start the pump. It is used to eliminate oil-liquid emulsions that settle in the pump’s tank. Recommended after the machine has not been used for extended periods of time
    • EXTERNAL VACUUM option to create a vacuum inside a container outside the machine and connected to the tank with a tube
    • The vacuum can be created by setting the time and disabling the vacuum sensor detection.
  • Main new features show on the display
  • Over to the chef

technical features

Electrical power supplyV220 (1 ph.) - 208/400 (3 ph.)
Phaseph1 (220V) - 3 (208/400/V)
Dimensions of the sealing barsmm530 (no. 2 side bars per tank - Total: 4)
Packaging cycle (Vacuum 99.9%)sec.Vacuum= 22 - Air re-immission= 5
Vacuum pumpmc/h40
Work surface heightmm893
Machine dimensions with the lid openmm1278x784x h.1344
Machine dimensions with the lid closedmm1278x784x h.985
Machine weight (Net/Gross)kg268/300
Available chamber dimensions (Tank+lid)mm399x540x h.155 (2 tanks)

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.
