MVS65 XP

Trolley vacuum - Sealing bars 656 mm - Process tracking and labeller

VACUUM MACHINE WITH CARRIAGE

MVS65XP main

MVS65 XP: professional vacuum sealer machine with automatic tracking

In many models of the MVS XP series of vacuum packaging machines, it is possible to trace the vacuum inside the packaging: an exclusive feature perfectly aligned with the innovative spirit of minipack®-torre.

For each operation, it is possible to set the emission of a label that summarizes the main characteristics of the packing process.

A second innovative element of these chamber vacuum sealers is the display, which includes a series of cutting-edge technologies in the food industry. The rich range of features is instantly accessible, enabling you to quickly set up packaging operations. In addition, the display allows checking in a few touches the need for technical interventions and assistance.

The whole new line of vacuum packaging machines XP has obtained the CE/ETL/NSF certifications.

Need more info? Get in touch now and we’ll answer all your queries!

technical features

MVS65 XP
2 Side Bars
Electrical power supply400V 50Hz 63mc
208V 60Hz 100mc
MAX power installed4,3 kW
(400V 50Hz 63mc)
5,9 kW
(208V 60Hz 100mc)
Maximum current7,5 A
(400V 50Hz 63mc)
19 A
(208V 60Hz 100mc)
Dimensions of the sealing bars656 mm
(no.2 side bars)
Packaging cycle
(Vacuum 99.9%)
Vacuum= 20 s
Air re-immission= 6 s
Vacuum pump63 mc/h
(all MV)
100 mc/h
(only 208V)
Work surface height889 mm
Machine dimensions
(lid open)
820x930x1480 mm
Machine dimensions
(lid closed)
820x930x1045 mm
Machine weight
(Net/Gross)
229/265 kg (63m³)
247/283 kg (100m³)
Available chamber dimensions
(Tank+lid)
611x670x251 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

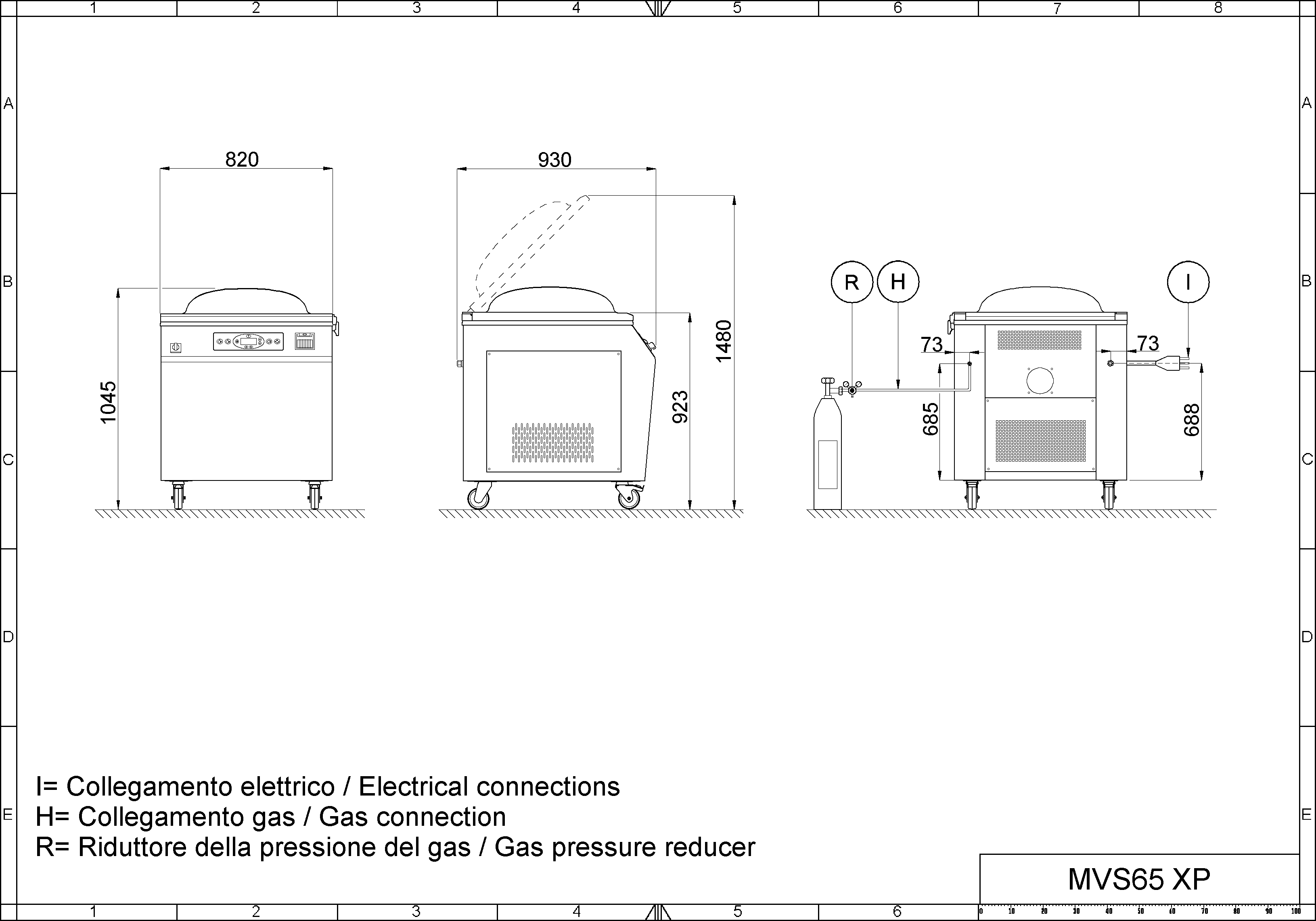

Technical drawing
