Sealpro 50

ATM tray sealer - max tray dimensions 380x270x120 mm

Sealpro 50 WEB2

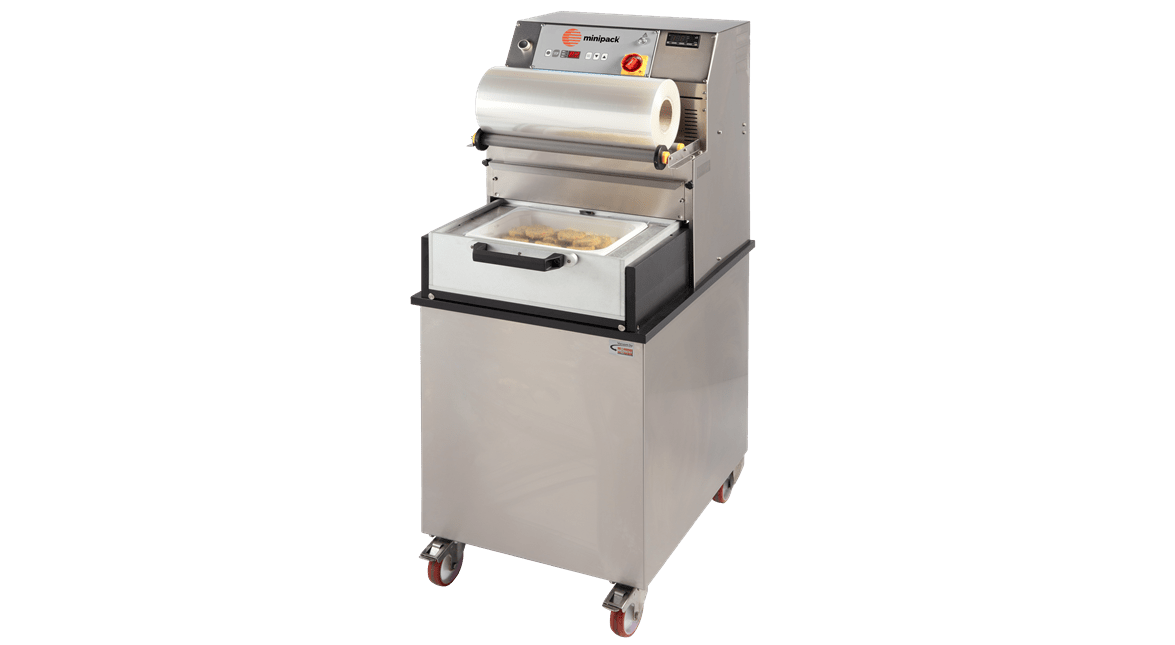

Sealpro 50

The Sealpro 50 is designed for modified atmosphere packaging, with particular attention to food hygiene and safety. Thanks to the installation of a dedicated sensor, it allows precise adjustment of vacuum and gas, making it suitable even for operators without technical experience. Moreover, the quick mold change system allows for format changes in a few minutes, while the drawer, mounted on special guides, moves smoothly.

Available on request:

- Mold for 1 tray
- Mold for 2 trays
- Mold for 3 trays
- Mold for 4 trays
- Mold for 5 trays
- Mold for 6 trays
- Universal sealing plate
- Skin mold on cardboard 1 imprint (h. 45mm)
- Skin mold on cardboard 2 imprints (h. 45mm)
- Automatic trim winder standard or with rubberized roller
- Tray skin
- 10mm over skin on tray
- 40mm over skin on cardboard
- Automatic drawer opening closure
- Special voltage supplement
- Internal silent compressor

Need more info? Get in touch now and we’ll answer all your queries!

technical features

Power supply230V/400V - 50hz
Maximum installed power2,5kW
Production capacityup to 5 cycles per minute
Maximum tray size380x270x120mm
Max roll width420mm - skin 450mm
Mold changeYes
Customizable moldYes
Vacuum pump20-40-60 m3/h
Modified atmosphere packaging (MAP)Yes
Vacuum sensorYes
Customized digital sealing programs5
Machine dimensions810x550x1300mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

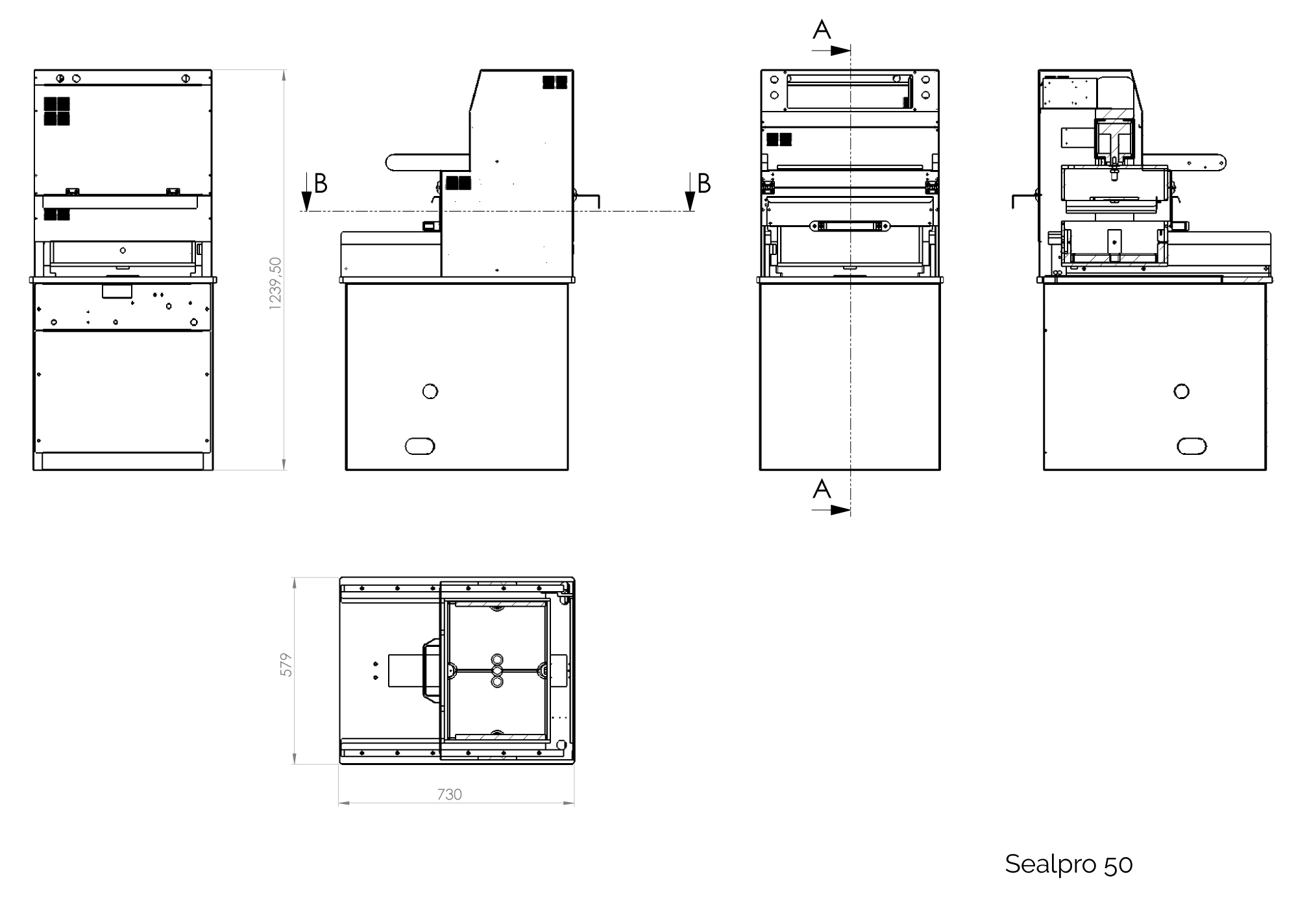

Technical drawing
