TUNNEL 50 DIGIT

Mono-chamber heat-shrinking tunnel - Tunnel mouth 450x240 mm

Tunnel 50 Digit (Nuovo logo)

Tunnel 50 Digit: all the flexibility of tunnel packaging

TUNNEL 50 e 70 are a master piece in Minipack-Torre shrink tunnel devices. Now on the market with up to dated solutions to pack with maximum efficacy the most different kind of shrinking film.

The INOX version of TUNNEL 50 is perfect for food or pharmaceutical applications.

Need more info? Get in touch now and we’ll answer all your queries!
  • Technical features
    • Manual regulation of conveyor height
    • Digital display with 9 storable programs
    • Selection of self rotation of conveyors rolls
    • Double air flap
    • Auto switch-off
    • Exit roll conveyor.

technical features

Electrical power supply200V 50/60Hz 3Ph
208V 60Hz 3Ph
220V 50/60Hz 3Ph
400V 50/60Hz 3Ph
MAX power installed7,0 kW (200V)
7,5 kW (208V)
7,2 kW (220V)
7,2 kW (400V)
Maximum current20 A (200V)
21 A (208V)
19 A (220V)
11 A (400V)
MAX product size400x220 mm x L.
(The maximum length depends on the shape, conveyor belt speed and type of film, etc.)
Machine dimensions1770x840x1465 mm
Machine weight (Net/Gross)188/236 kg
Tunnel infeed dimensions450x240 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

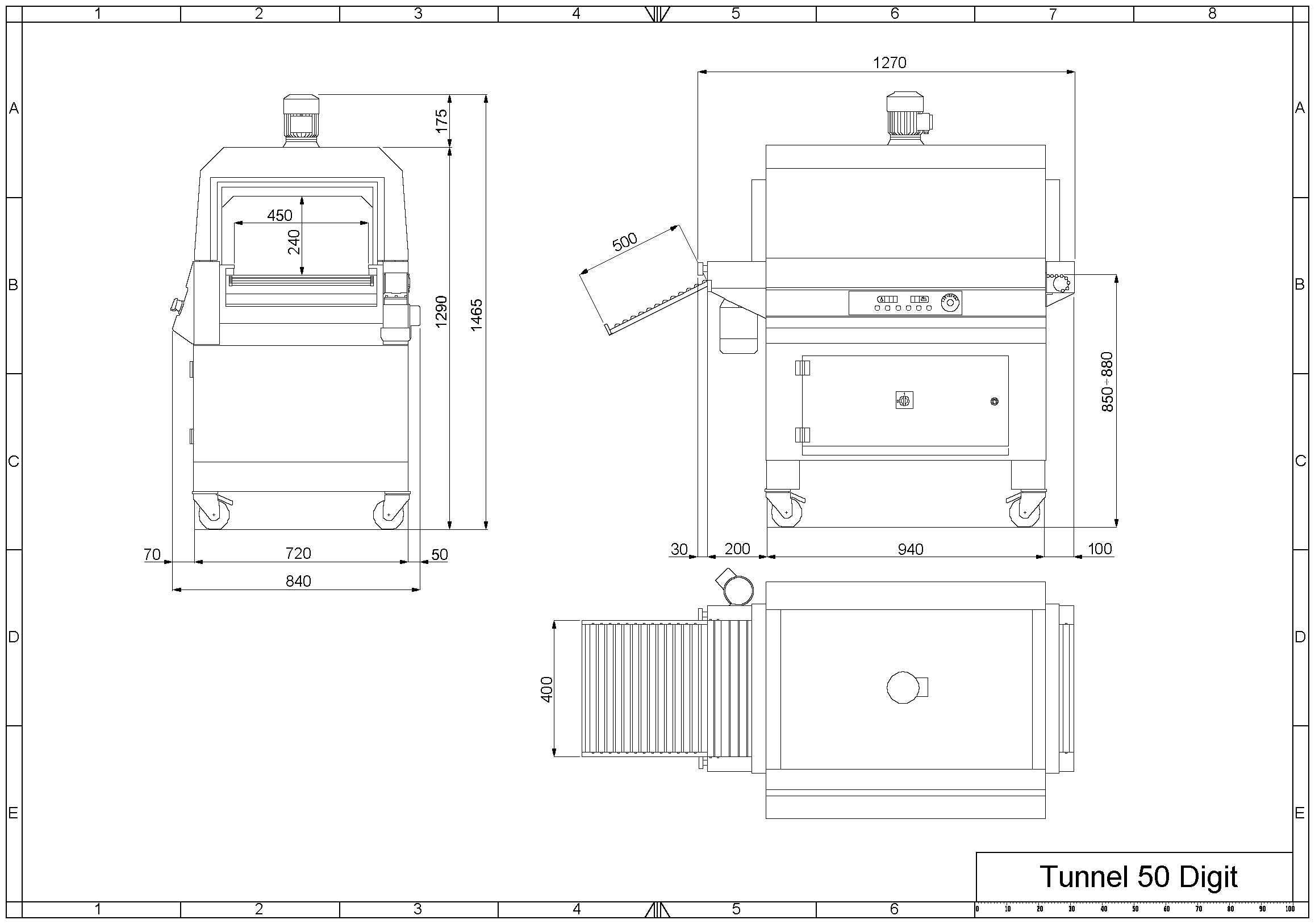

Technical drawing

Optional

19kVA Auto-transformer kit 415/460V 3Ph SEC. 230V 1Ph/400V 3Ph

Module kits to transfer unstable products from “Pratika 56” to “Tunnel 50/50 Twin”

Module kits to transfer unstable products from “Modular 50 S” to “Tunnel 50/50 Twin”
