TUNNEL 70 DIGIT

Dual-chamber heat-shrinking tunnel - Tunnel mouth 680x390 mm

Tunnel 70 Digit sc

Tunnel 70 Digit: the most flexible packaging solution

TUNNEL 70 DIGIT is the largest version of the shrink tunnel line. The machine is equipped with a host of updated technical and aesthetic features that are designed to meet a number of packaging needs. The shrink wrap tunnel is flexible and versatile, and can operate with a wide variety of heat-shrink films.



Need more info? Get in touch now and we’ll answer all your queries!
  • Technical features
    • Manual belt height adjustment
    • Digital display with 9 programs that can be selected and customised
    • Option of selecting the auto-rotating feature for the rollers
    • Product conveyor
    • Adjustable double air baffles
    • Auto-off program
    • Outfeed roller conveyor provided as standard
    • Two separate chambers with temperature control.

technical features

Electrical power supply200V 50/60Hz 3Ph
208V 60Hz 3Ph
220V 50/60Hz 3Ph
400V 50/60Hz 3Ph
MAX power installed14 kW (200V)
15 kW (208V)
14 kW(220V)
14,5 kW (400V)
Maximum current38 A (200V)
43 A (208V)
34 A (220V)
21 A (400V)
MAX product size680x390 mm xL.
(The maximum length depends on the shape, conveyor belt speed and type of film, etc.)
Machine Dimensions2770x1160x1640 mm
Machine weight (Net/Gross)415/483 kg
Tunnel infeed dimensions680x390 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

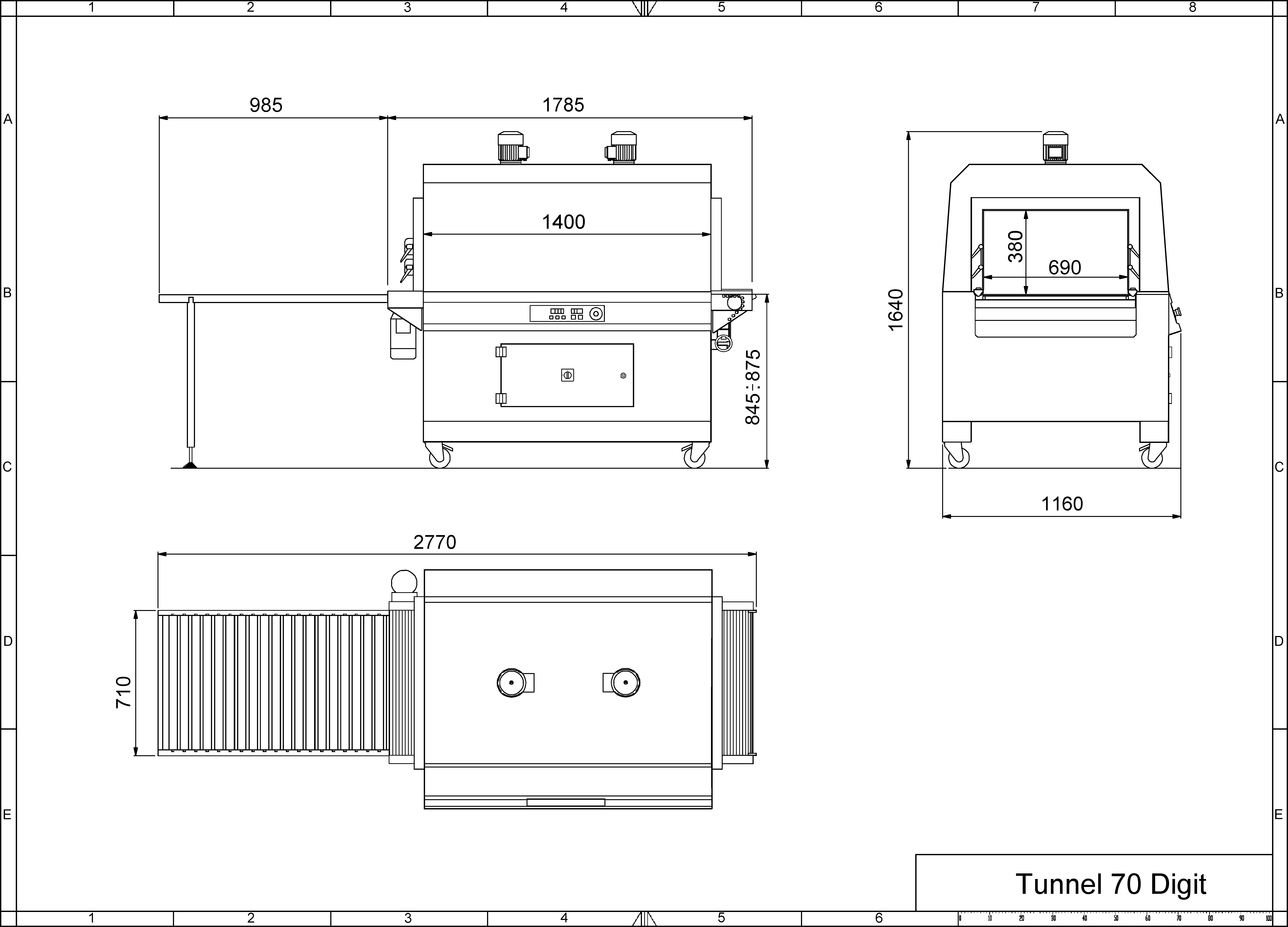

Technical drawing

Optional

19kVA Auto-transformer kit 415/460V 3Ph SEC. 230V 1Ph/400V 3Ph
