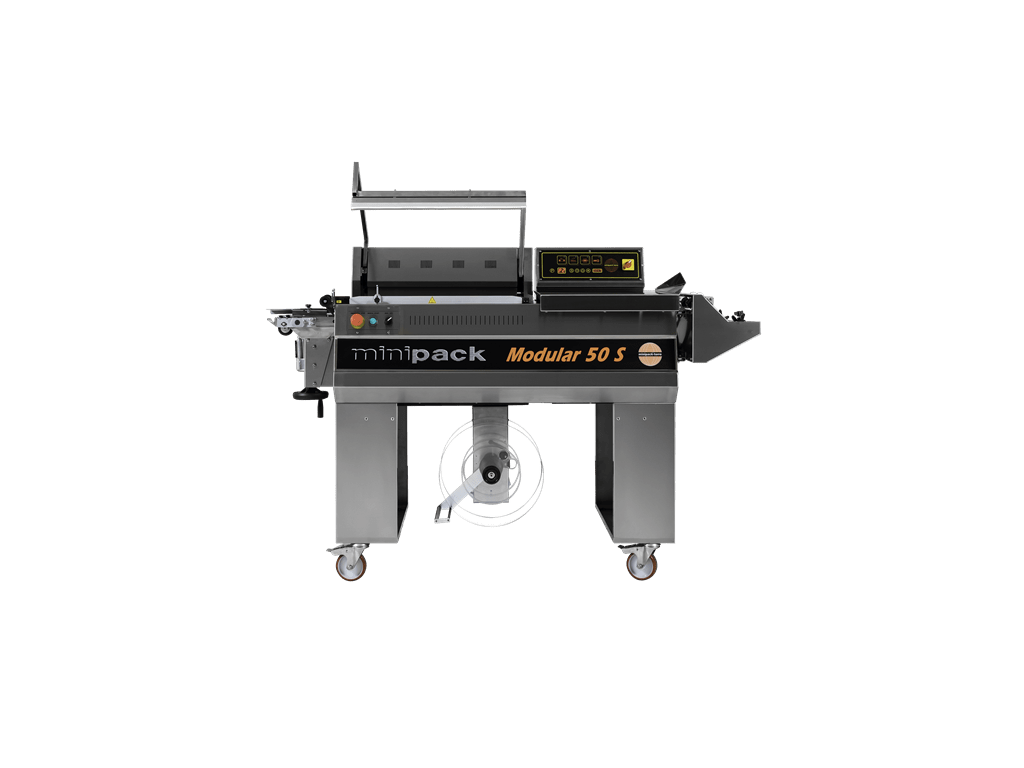

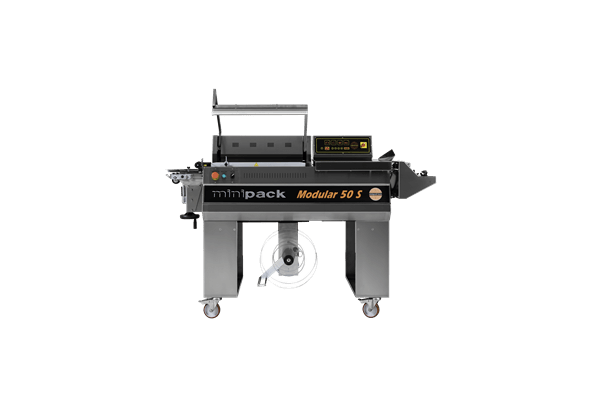

Modular 50S INOX
Semiautomatic packaging machine - L-sealing - Sealing bar 540x400 mm
Modular 50S INOX: a flexible and handy wrapping machine
The MODULAR LINE semi-automatic, angular machines offer maximum packaging flexibility, and a quality product at a competitive price.
MODULAR 50S INOX, MODULAR 50S and MODULAR 70, which have recently been updated and revised, can be used to package products using any material, producing highly attractive results.
MODULAR LINE uses an electronically controlled sealing system and the very latest safety devices.
The lines can be used in automatic or semi-automatic mode, and the operating programs can be customised in order to simplify the packaging process and maximise productivity.The INOX version of Modular 50 is perfect for food or pharmaceutical applications.
MODULAR 50S INOX, MODULAR 50S and MODULAR 70 can also be used with the minipack-torre TUNNEL LINE.
technical features
| Electrical power supply | 200V 50/60Hz 208/220V 60Hz 230V 50Hz 400V 50Hz 400V 50/60Hz 440V 50/60Hz |
| Phase | 3Ph |
| MAX power installed | 2,4 kW |
| Hourly output | 0-900 p/h |
| Maximum current | 12 A (200V) 11,5/10,9 A (208V/220V) 10,4 A (230V) 6 A (400V) 5,5 A (440V) |
| Available dimensions of the sealing bars | 540x400 mm |
| MAX Reel Dimensions (diameter) | 250 mm |
| MAX Reel Strip Dimensions (width) | 600 mm |
| Work surface height | 930 mm |
| Machine weight (Net/Gross) | 151/182 kg |
| Machine dimensions sealing frame open | 1565x750x h.1400 mm |
| Machine dimensions sealing frame closed | 1565x750x h.1100 mm |
minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.
DOWNLOAD PDF
DO YOU HAVE THIS MACHINE?
Register it now on our website...
Would you like to pack your products with this machine? Book your free, non-binding packaging test.Optional
Module kits to transfer unstable products from “Modular 50 S” to “Tunnel 50/50 Twin”
Customisation
Long front bar kit
gallery
