REPLAY 35 evo

Tabletop manual heat shrink - sealing bar 380X250mm

replay35evo no carrello-LD

Replay 35 EVO: Tabletop manual heat shrink

The REPLAY evo range offers more basic products, yet with the same high quality. Equipped with new cutting-edge and exclusive systems, it is the most competitive offer of the new minipack®-torre chamber machines.

REPLAY 35 evo combines significant technological content with a basic and compact shape in order to aim at substance without losing sight of excellence, a characteristic common to all machines made by minipack®-torre.

Need more info? Get in touch now and we’ll answer all your queries!
  • Plus
    • Innovative rool holder support for quick film changes
    • Double magnet sealing kit as standard
    • Soft shrink
    • Fan stop
    • Ultra-performing steel heating elements
    • Mobile product plate, released from the reel support
    • Possibility of height adjustment of the internal plate
    • 9 storable programs
    • Reduced energy consumption
    • New latest-generation board

technical features

Electrical power supply230V 1Ph
120V 1Ph
Maximum power installed2kW (230V)
2,25kW (120V)
Maximum current8,6A (230V)
19A (120V)
MAX product size350x240x140 mm
Available dimensions of the sealing bars380x250 mm
MAX Reel Dimensions (Ø x length)Ø200x380 mm
Machine dimensions (open hood)935x690x640 mm
Machine dimensions (closed hood)935x420x640 mm
Weight (Net/Gross)49-63 kg

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

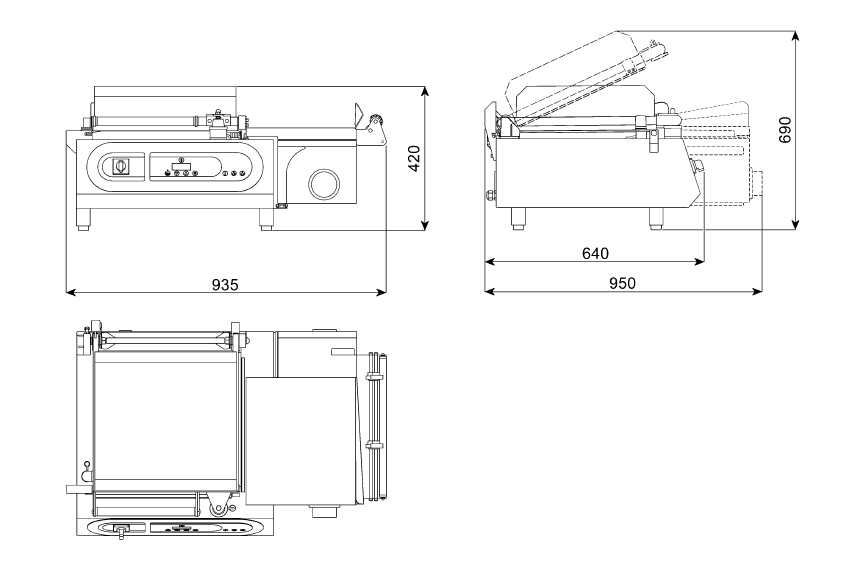

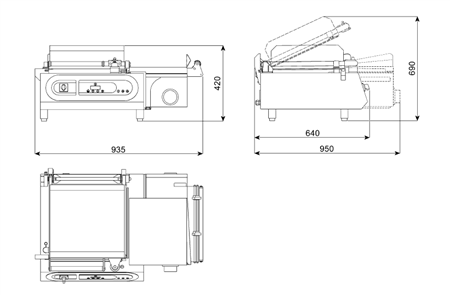

Technical drawing
