Tabletop vacuum - Sealing bar 450 mm - Process tracking and labeller

MVS45XP main

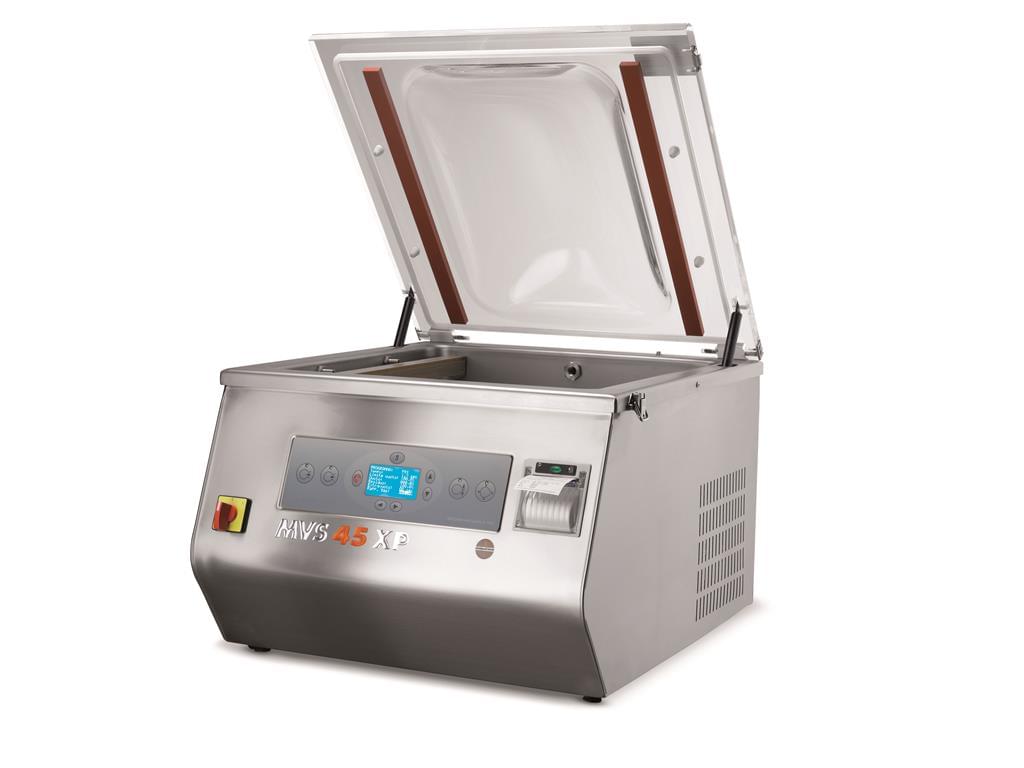

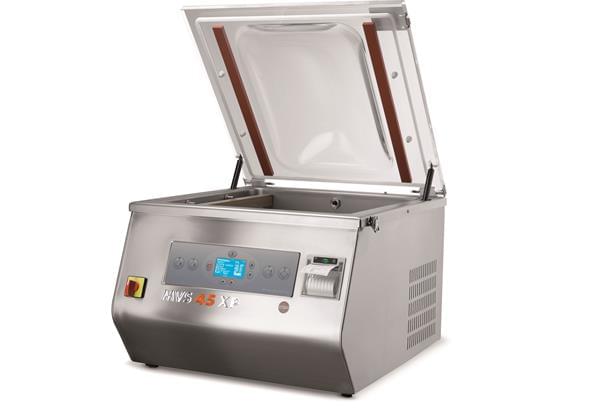

MVS45 XP: the chamber vacuum sealer with tracking of internal vacuum

With the new MVS XP line the vacuum inside the package can be traced: it is a new and revolutionary concept for the internal vacuum, an exclusive innovation in the minipack®-torre style.

In fact, some models in the range of chamber vacuum sealers offer the possibility to obtain for each packing operation a label in which the essential information of the machining is printed.

The control panel installed on these machines, at the forefront of the technology of the food industry, is a new concept. The display allows a quick setting of operations thanks to its interactivity and ease of navigation and helps the user to program the technical and assistance interventions.

The whole new line of vacuum packaging machines XP is CE/ETL/NSF Certified.

Need more info? Get in touch now and we’ll answer all your queries!

technical features

Front Bar
2 Side Bars
Electrical power supply120V 60Hz 1Ph
230V 50/60Hz 1Ph
120V 60Hz 1Ph
230V 50/60Hz 1Ph
MAX power installed1,4 kW (120V)
1,1 kW (230V)
2,0 Kw (120V)
2,0 Kw (230V)
Maximum current13 A (120V)
6 A (230V)
17 A (120V)
9 A (230V)
Dimensions of the sealing bars450 mm450 mm
Packaging cycle
(Vacuum 99,9%)
Vacuum= 24 s
Air re-immission= 8 s
Vacuum= 24 s
Air re-immission= 8 s
Vacuum pump20 mc20 mc
Machine dimensions (lid open)544x649x750 mm544x649x750 mm
Machine dimensions (lid closed)544x649x490 mm544x649x490 mm
Machine weight (Net/Gross)78/87 kg78/87 kg
Available chamber dimensions
466x405.5x226 mm351x466x226 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

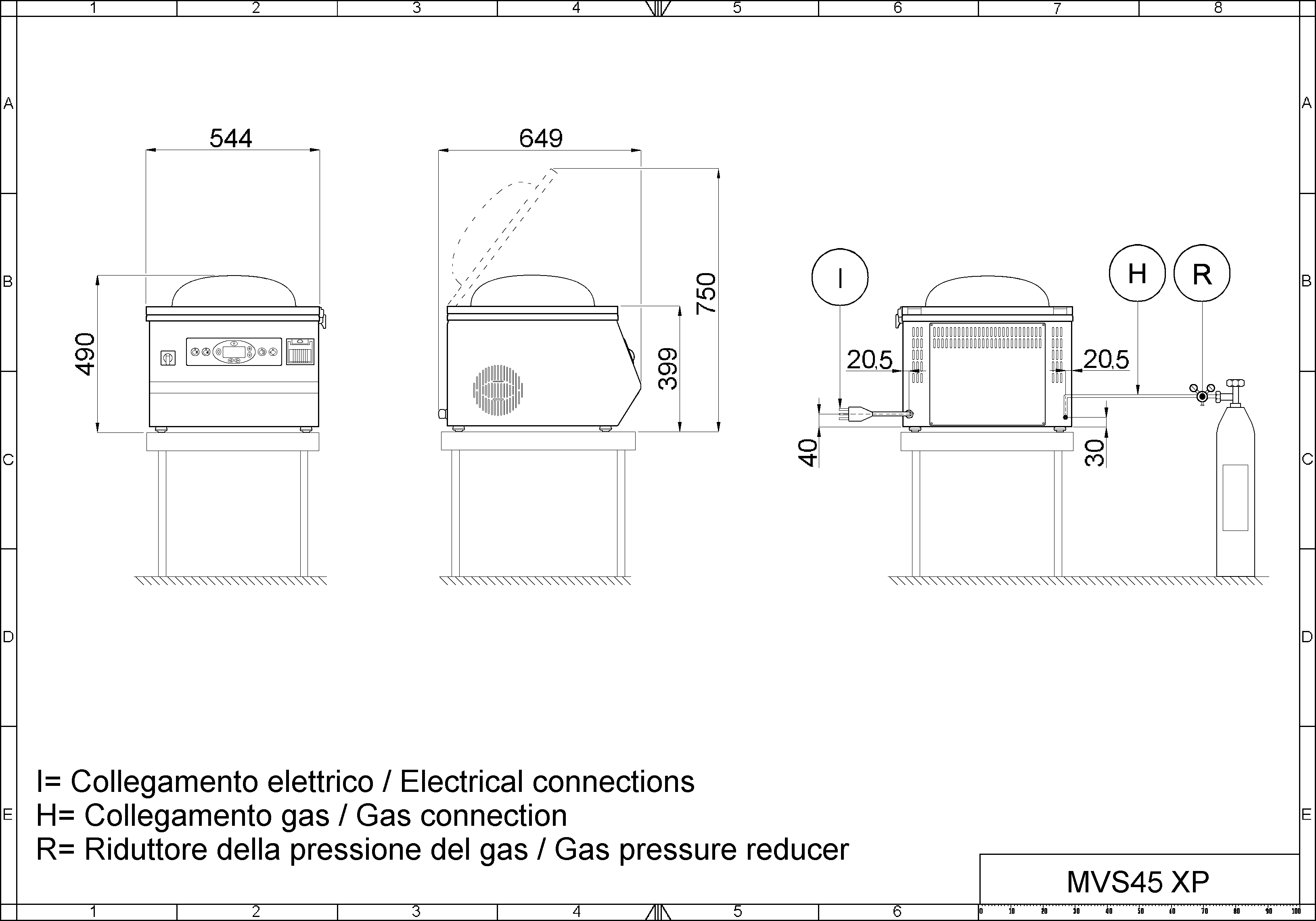

Technical drawing
