MVS45L X

Trolley vacuum - Sealing bar 450 mm

VACUUM MACHINE WITH CARRIAGE

MVS45LX main

MVS45L X: the simple and functional chamber vacuum sealer with carriage

Maximum simplicity of setting and use, in front of the availability of many technological content and functions of high quality. These are the main features of MVS X chamber vacuum sealers, made with the help of professional chefs who have been able to enrich the equipment with new functions of the latest generation, cut out on the specific needs of professional operators.

These vacuum packaging machines allow to operate up to 10 different programs, customised to the main packaging requirements. The control panel with tactile controls is hermetically sealed on the front of the bodywork, so as to prevent any fluid filtration on the board.

Other features include:

  • Special message that warns of the need for oil change
  • Electronic sensor which, importing data directly from the card, is able to calculate the vacuum realized in the Chamber
  • Possibility of setting the machine to the vacuum on the atmospheric pressure conditions at the different altitudes
Need more info? Get in touch now and we’ll answer all your queries!
  • Technical features
    • Stainless steel (AISI 304)
    • Vacuum cycle with stop
    • Bag scrap cutting device
    • Quick-coupling aluminium sealing bar
    • Clear plastic lid suitable for use with food
    • Volumetric vacuum sensor
    • PE-HD filling tables
    • 10 customisable programs
    • Self-calibration
    • Sealing bar overload safety device
    • Oil and assistance warning light
    • CE/ETL/NSF certification.
  • Versions

technical features

MVS45L X
Front Bar
MVS45L X
2 Side Bars
Electrical power supply120V 60Hz 1Ph
230V 50/60Hz 1Ph
120V 60Hz 1Ph
230V 50/60Hz 1Ph
MAX power installed1,4 kW (120V)
1,1 kW (230V)
1,4 kW (120V)
1,1 kW (230V)
Maximum current13 A (120V)
6 A (230V)
13 A (120V)
6 A (230V)
Dimensions of sealing bars450 mm
(no. 1 front)
450 mm
(no. 2 side bars)
Packaging cycle
(Vacuum 20%)
Vacuum= 24 s
Air re-immission= 8 s
Vacuum= 24 s
Air re-immission= 8 s
Vacuum pump20 mc20 mc
Work surface height889 mm889 mm
Machine dimensions
(lid open)
546x676x1200 mm546x676x1200 mm
Machine dimensions
(lid closed)
546x676x1012 mm546x676x1012 mm
Machine weight (Net/Gross)104/129 kg104/129 kg
Available chamber dimensions
(Tank+lid)
466x405,5x226 mm351x466x226 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

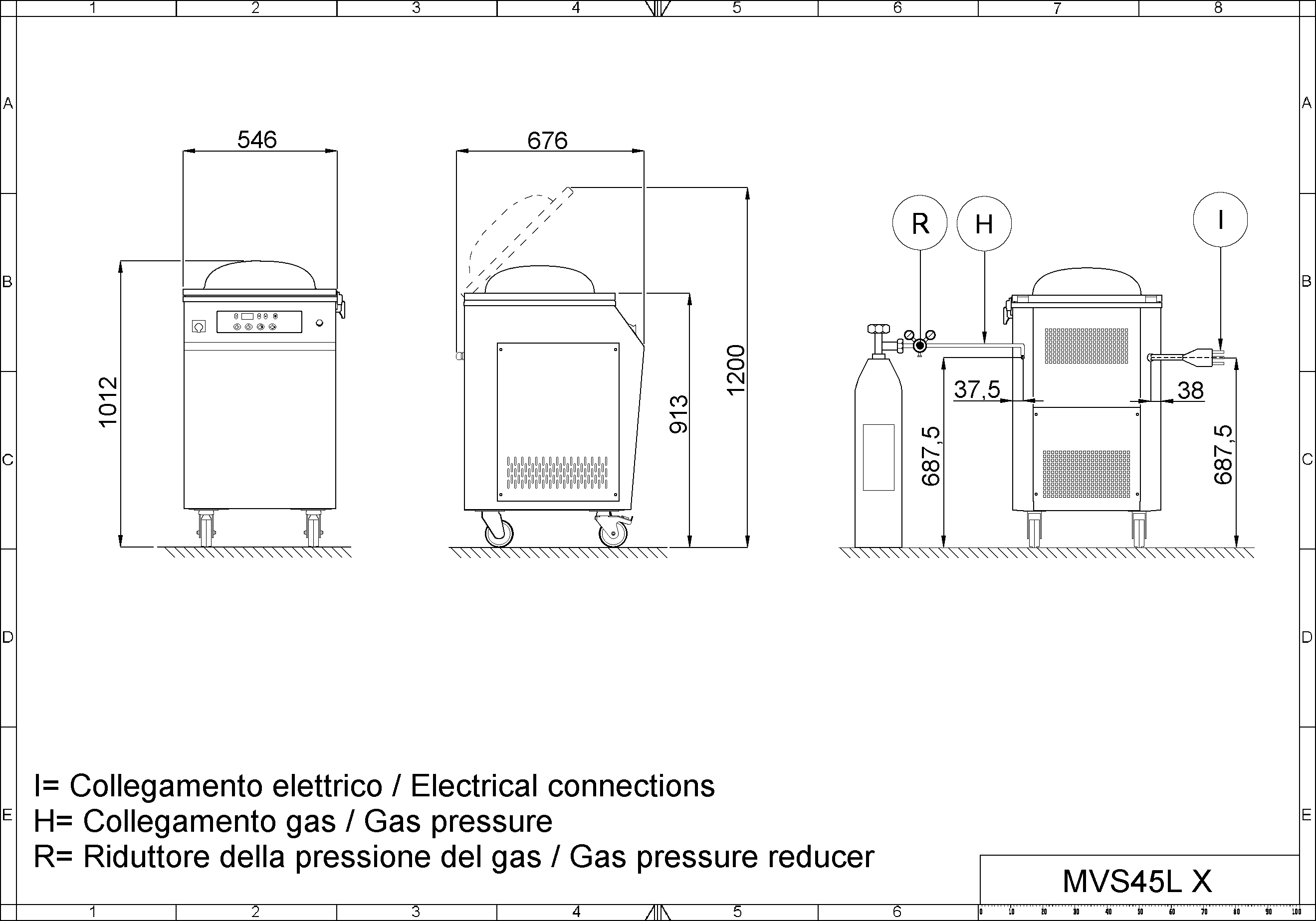

Technical drawing
