Trolley vacuum - Sealing bar 450 mm - Process tracking and labeller

MVS45LXP main

MVS45L XP: chamber vacuum sealer with carriage with vacuum tracking system

The new series of chamber vacuum sealers MVS XP allows the tracing of the vacuum in the packaging: an innovative and revolutionary feature for the internal vacuum, typical of the pioneering style by minipack®-torre.

In fact, some of the packaging machines offer the possibility to print for each operation a label in which all the most important packaging information is provided.

The vacuum packaging machines in this series also feature a new avant-garde display, which allows you to access a wide range of innovative features for the food industry. Thanks to user-friendly technology and ease of use, the control panel allows you to quickly set up all packaging options and to easily program the technical assistance interventions.

The whole new series of chamber vacuum sealers XP is CE/ETL/NSF Certified.

Need more info? Get in touch now and we’ll answer all your queries!
  • A series of unique benefits
    • Newly-designed liquid crystal CONTROL DISPLAY: it provides extensive packaging information, quick and easy settings and option of programming technical work servicing on the machine at the premises of the end user
    • PRELIMINARY DIAGNOSIS of technical issues on the machine directly from the display via the check-up function without opening the machine
    • Option of retrieving the types of products that need to be packaged, divided by macro-categories (meat, fish, cheeses, vegetables, etc.)
    • Option of entering the type of inert gas (e.g. FOOD1-2-3) and setting (in a submenu) the percentage of gases forming the mix (e.g. O2=10% N=70% CO2=20%), thereby transferring the set data onto the label. This is a top function in case of external mixers
    • Option of selecting the subcategories (e.g. meat, veal, beef, chicken, pork, etc.) for each product macro-category
    • Automatic setting for packaging steps with suggested or default values after the selection of the subcategories, while the expiry date remains to be set (optional step)
    • EASY PULSE function to make programming easier, with the benefit for the operator of recalling functions that have already been set and settings
    • Printing option (to be programmed) to issue the vacuum certification label and choose the number of copies to be applied on the individual items of packaging created during each cycle
    • Electronic SOFT AIR designed with various speed settings. It allows the air gradually go back into the chamber without letting the packaging suddenly collapse (ideal for products with sharp areas)
    • CP-CONDITIONING PROGRAM function to start the pump. It is used to eliminate oil-liquid emulsions that settle in the pump’s tank. Recommended after the machine has not been used for extended periods of time
    • EXTERNAL VACUUM option to create a vacuum inside a container outside the machine and connected to the tank with a tube
    • The vacuum can be created by setting the time and disabling the vacuum sensor detection.
  • Main new features show on the display
  • Over to the chef
  • Versions

technical features

Front Bar
2 Side Bars
Electrical power supply120V 60Hz 1Ph
230V 50/60Hz 1Ph
120V 60Hz 1Ph
230V 50/60Hz 1Ph
MAX power installed1,4 kW (120V)
1,1 kW (230V)
1,4 kW (120V)
1,1 kW (230V)
Maximum current13 A (120V)
6 A (230V)
13 A (120V)
6 A (230V)
Dimensions of sealing bars450 mm
(no. 1 front)
450 mm
(no. 2 side bars)
Packaging cycle
(Vacuum 20%)
Vacuum= 24 s
Air re-immission= 8 s
Vacuum= 24 s
Air re-immission= 8 s
Vacuum pump20 mc20 mc
Work surface height889 mm889 mm
Machine dimensions
(lid open)
546x676x1200 mm546x676x1200 mm
Machine dimensions
(lid closed)
546x676x1012 mm546x676x1012 mm
Machine weight (Net/Gross)104/129 kg104/129 kg
Available chamber dimensions (Tank+lid)466x405,5x226 mm351x466x226 mm

minipack®-torre shall not be held liable for typos or printing errors in this catalogue. It also reserves the right to make changes to the specified features without prior notice. All trademarks are property of their respective owners and are hereby acknowledged.

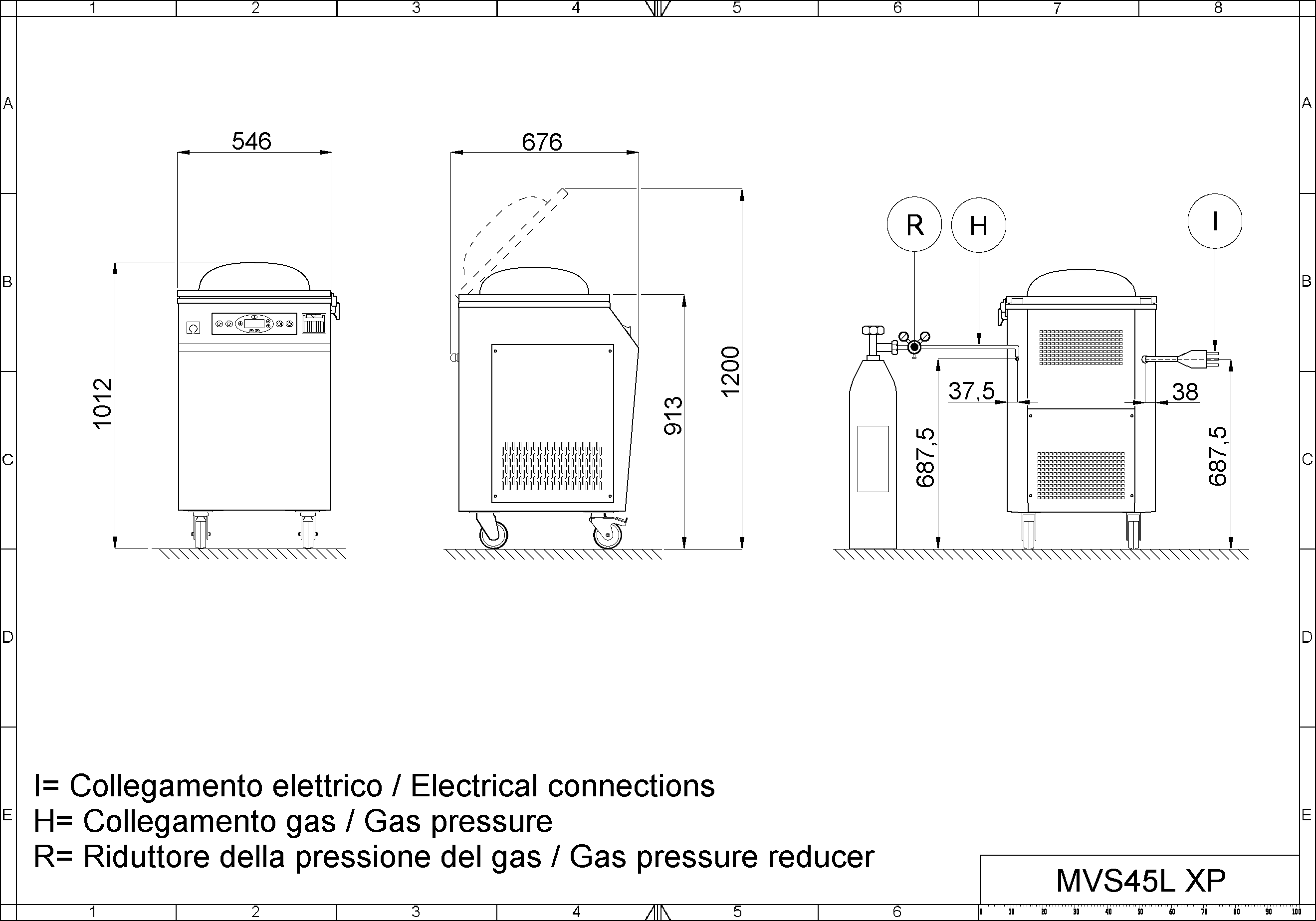

Technical drawing
